Description

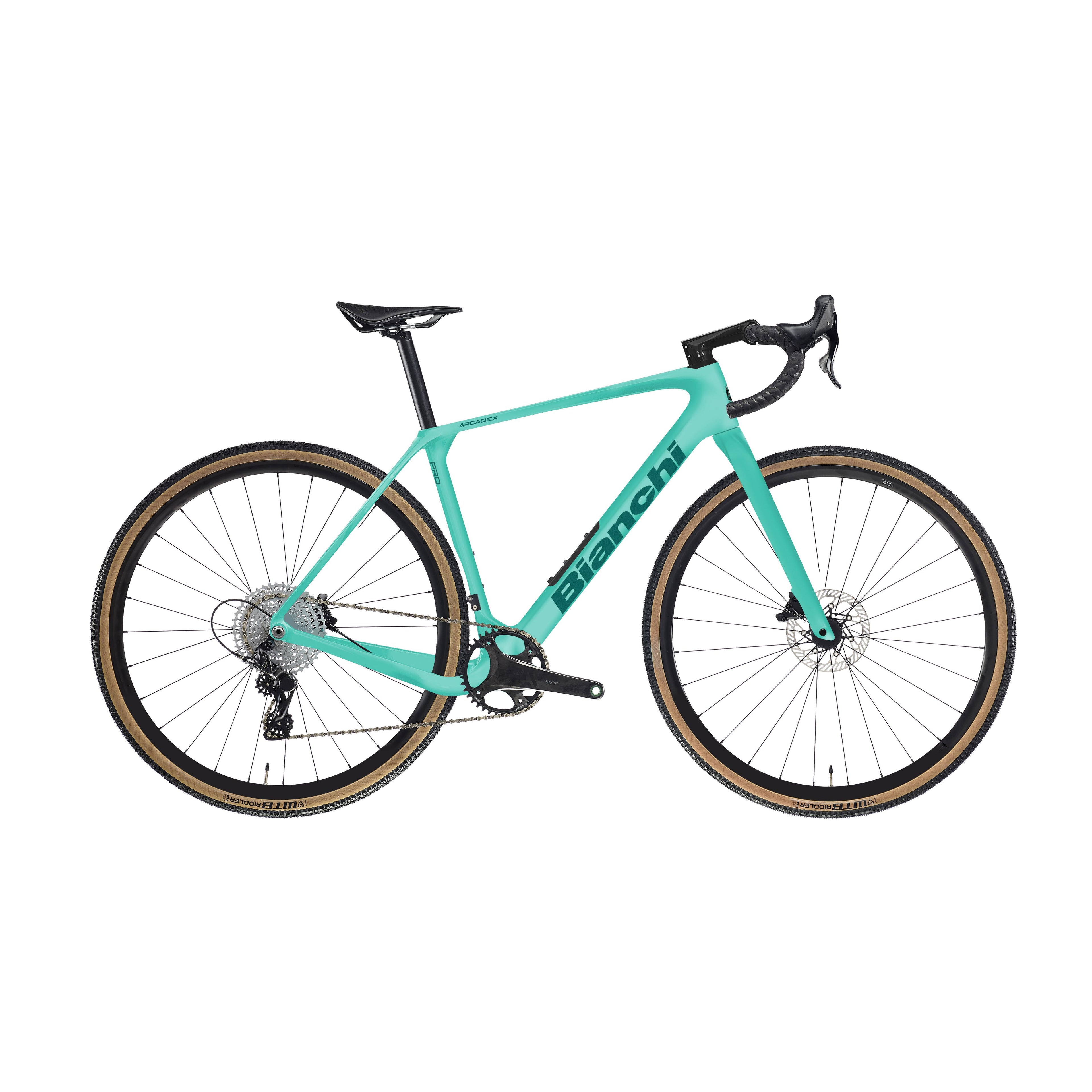

gravel bike grx 820 Bianchi Arcadex Pro GRX 820 Carbon Gravel Bike – In Bici VeritasA carbon gravel bike with Shimano GRX 820 1x12 gearing, ideal for exploring the world and going on adventures on two wheels. Bianchi Arcadex PRO Technical Data Sheet Component Detail Chassis Arcadex PRO Frame Kit Disc brakes: Flat mount 140 160 mm Bottom bracket: PressFit 86. 5 x 41 mm Rear axle: 12mm thru axle OLD 142mm Front derailleur: not supported Rear derailleur: SRAM UDH type Fork Bianchi Arcadex in carbon fiber Disc brakes: Flat mount 140 160
A carbon gravel bike with Shimano GRX 820 1x12 gearing, ideal for exploring the world and going on adventures on two wheels.
Bianchi Arcadex PRO – Technical Data Sheet
| Component | Detail |
|---|---|
| Chassis | Arcadex PRO – Frame Kit |
| Disc brakes: Flat mount 140/160 mm | |
| Bottom bracket: PressFit 86.5 x Ø41 mm | |
| Rear axle: 12mm thru axle OLD 142mm | |
| Front derailleur: not supported | |
| Rear derailleur: SRAM UDH type | |
| Fork | Bianchi Arcadex in carbon fiber |
| Disc brakes: Flat mount 140/160 mm | |
| Front axle: 12mm thru axle OLD 100mm | |
| Wheelbase: ETRTO 622-50 mm | |
| Head tube diameter: 1 1/8" | |
| Headset | Bianchi Custom Acros ICR – integrated cable routing |
| Gear shift controls | Shimano GRX 820 ST/BL-RX820 |
| Rear derailleur | Shimano GRX 822 RD-RX822 SGS – Max sprocket 51T |
| Crankset | Shimano GRX 820 FC-RX820-1, 40T |
| Lengths: 170 mm (XS–SM), 172.5 mm (MD–LG), 175 mm (XL) | |
| Bottom bracket | Shimano SM-BB72-41B – Press fit |
| Chain | Shimano CN-M7100 |
| Sprocket pack | Shimano CS-M7100 – 12-speed, 11-51T – MicroSpline |
| Brakes | Shimano BR-RX820 hydraulic brakes |
| Brake discs | Shimano SM-RT70 IceTech – 160 mm (front and rear), Centerlock |
| Wheels | Velomann Terbium – Clincher and tubeless compatible |
| Diameter: 700C – Material: Carbon | |
| Rim height: 30 mm – Internal width: 25 mm | |
| Tires | Pirelli Cinturato™ Gravel M Classic, 45-622, tan sidewall |
| Handlebar stem | Velomann in AICR aluminum, rise -2° |
| Ø steering: 1-1/8" – Ø handlebar connection: 31.8 mm | |
| Lengths: 80mm (XS), 90mm (SM), 100mm (MD), 110mm (LG), 120mm (XL) | |
| Handlebar bend | Velomann Gravel ICR Aluminum |
| Flare: 16° – Drop: 130 mm – Reach: 70 mm | |
| Widths: 400 mm (XS–SM), 420 mm (MD–LG), 440 mm (XL) | |
| Handlebar tape | Bianchi Hexagon tape – 2.5 mm, solid black color |
| Seatpost | Velomann Carbon UD – Ø27.2 mm |
| Lengths: 300 mm (XS), 350 mm (SM–MD–LG–XL) | |
| Saddle | Velomann MITORA 149 H1 |
| Technical coating – Foam padding – Carbon reinforced shell | |
| Central hole – Aisi rails – Length: 250 mm – Width: 149 mm – Weight: 230 g ± 2 |
